Dum Audio Specification Sheets

Engineered and Produced by the Pros

Our products were engineered by award-winning experts with a track record of designing high-end home audio products.

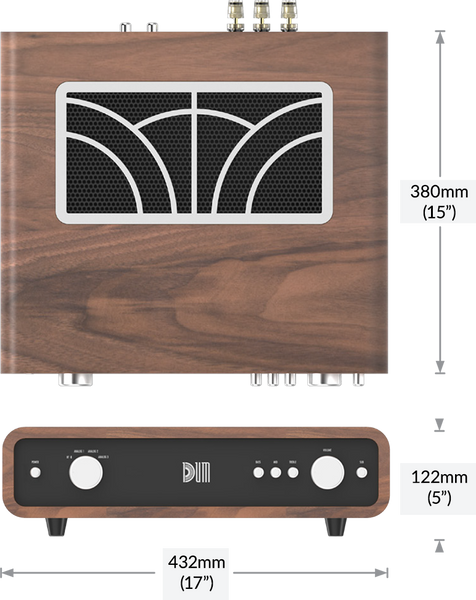

Integrated Amplifier
Specifications
  • Analog Input

    RCA (x 2), 3.5mm
  • Amp Architecture

    Ultra HD Class D
  • Impedance

    4-16 Ohm
  • Bluetooth

    5.0 aptX
  • Power Output

    100W RMS (L/R)+ 200W RMS (Sub)
  • Total Harmonic Distortion (THD)

    0.06% @1W
  • Frequency Response

    20-20KHZ
  • Signal to Noise Ratio

    111dB
  • Terminal Ports

    Gold Binding Post
  • Input Sensitivity

    900mV
  • Standby Power Consumption

    <0.3W
  • Power consumption

    400W
  • Weight

    8.0kg (17.6 lbs.)

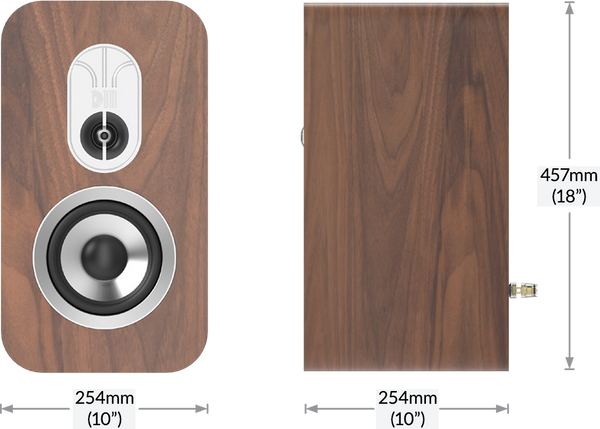

Passive Speakers
Specifications
  • Woofer

    7" Alumimum Cone
  • Tweeter

    1" Silk Dome
  • Inputs

    Gold Binding Post
  • Power Handling

    100W
  • Sensitivity

    86dB
  • Nominal Impedance

    4 Ohm (4, 6, 8 Ohm Compatible)
  • Crossover Frequency

    2KHz
  • Frequency Range

    80Hz-20KHz
  • Weight

    10.4kg (22.9 lbs.)

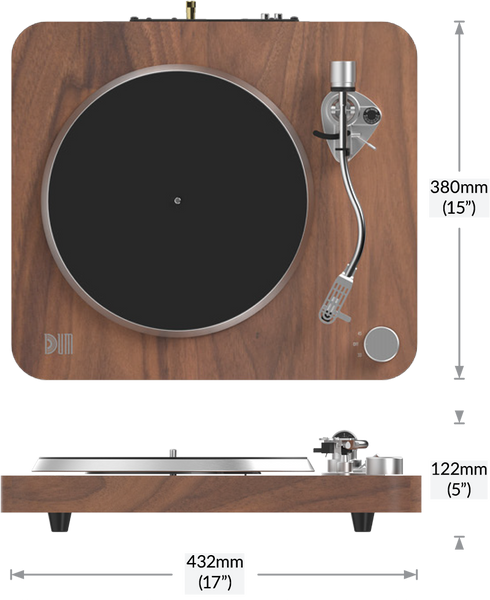

Turntable
Specifications
  • Speeds

    33 1/3 rpm / 45 rpm
  • Wow and Flutter

    0.15% / 0.05%
  • S/N Ratio

    ≥63dB
  • Frequency Range

    (100Hz/10KHz-10dB) ±3/±6
  • Cartridge Type

    MM
  • Recommended Load Impedance

    47kohm
  • Record Tracking Force

    3g +/- 0.5g
  • Counter Weight

    77g +/- 1g
  • Pre-amp

    MM
  • Power

    AC 100-240V 50/60Hz
  • Power Consumption

    ≤5W
  • Weight

    7.5kg (16.5 lbs.)

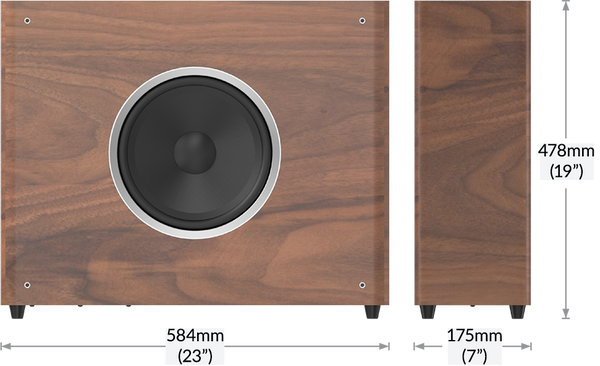

Passive Subwoofer
Specifications
  • Passive Subwoofer Dimension

    10"
  • Inputs

    Gold Binding Post
  • Min, Max Power

    200W RMS
  • Nominal Impedance

    4 OHM
  • Frequency Response

    31Hz-200Hz
  • Sensitivity

    91 dB
  • Sound Pressure Level

    91 dB @ 2.83V/1m
  • Crossover Frequency

    20Hz ~ 300 Hz
  • Downward Firing

    Yes
  • Weight

    14.2kg (31.3 lbs.)
